JUT11-500

Quick Overview

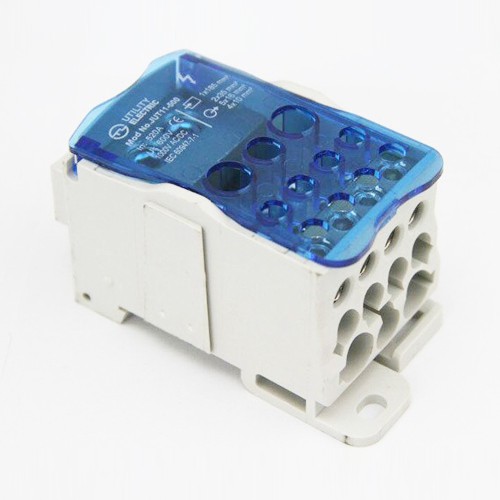

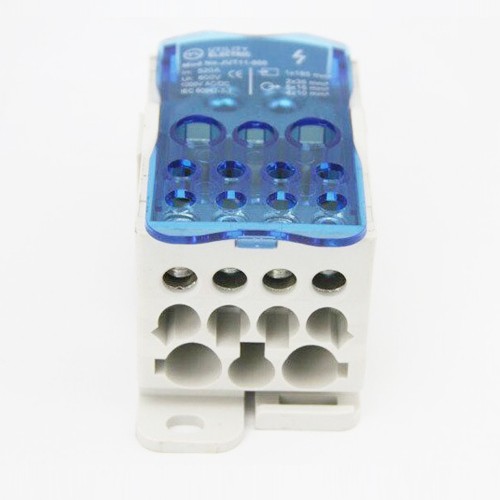

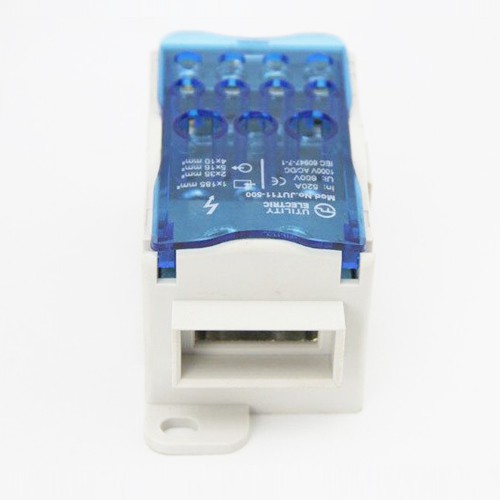

Bus Bar Terminal JUT11-500


 Download Catalog

  • Description
 Name  Date  Unit
 Model  JUT11-500
 Number of connection points  12
 Number of potentials  1
 Color  Grey
 Length  96  mm
 Width  49  mm
 Height  50  mm
 Pollution degree  3
 Insulation material group
 Rated surge voltage  8  KV
 Rated voltage  690  V
 Nominal current  500  A
 Maximum height of copper   8  mm
 Maximum width of copper
 Outlet wire connection capacity  2*35+5*16+4*10  mm²
 Insulation material  PA66
 Flame-retarded Rating  UL94 V-0
